TECHNICAL INTRODUCTION

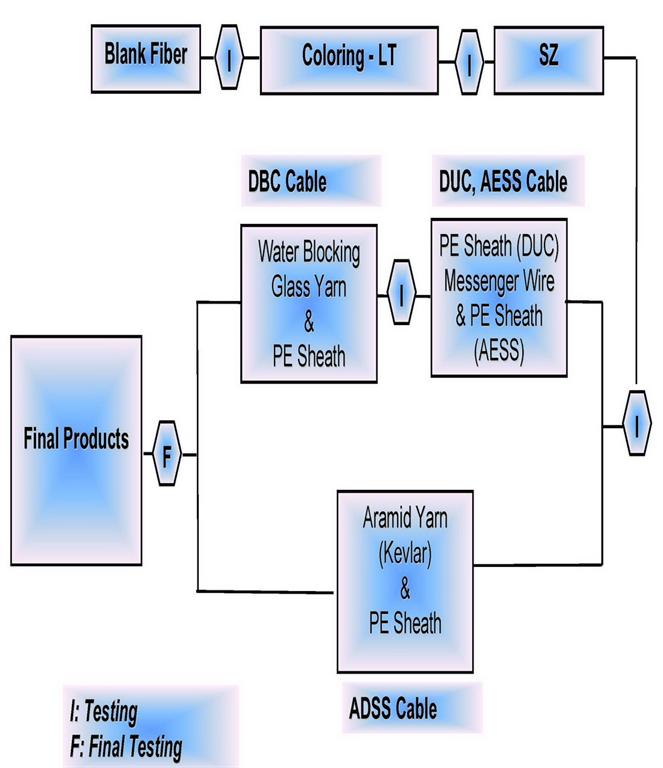

1. PRODUCE OPTIC FIBRE PROCESS
2. PRODUCTION LINE 2.1 LT PRODUCTION LINE (NOKIA - MAILLEFER OFC - 66)
· Coloring and Loose Tubing
· Proccessing Speed: 125m/min
· LT Maximum Length: 12km
· Requirements:
§ Fibers at Sine form (inside LT)
§ Good EFL
§ Good colored
§ Good tensile.
§ Good ratio for fibers and LT§ Good condition for final LT
2.2 S-Z PRODUCTION LINE (NOKIA MAILLEFER OFC 70-110)
· LT and other members at SZ form and arounded CSM
· Maximum speed: 40m/min
· Maximum SZ length: 10km
· Requirements:
§ SZ formed
§ Good tension
§ Good strength
§ Good at water resistance
2.3 SHEATHING LINE
· Capacities:
§ DUC Cable (metalic and non metalic)
§ DBC Cable (metalic or non metalic)
§ Fig.8 AESS Cable (metalic or non metalic)
§ ADSS cable
§ Free Gel Cable, ACC cable
· Ready to design to customers:
§ Cable Structure
§ Cable Length
· Max. speed: 25m/min.
· Max. length: 5 Km
